Focus Pulling Guide: Marks, Rehearsal and Where to Look

Short answer

Reliable focus pulling comes from marks and rehearsal, not from reflexes. Mark the two or three distances that matter with a wax pencil on the follow focus disc, mark the actor positions on the floor with tape, rehearse the pull at speed three times, and watch the actor rather than the monitor during the take.

Focus pulling looks like a reflex skill and is almost entirely preparation. Marks on the disc, marks on the floor, a rehearsal at speed, and then a take where you are watching the actor rather than the screen. A Tilta Pocket Follow Focus at around $59 with its A and B stops does the mechanical half; the rest is a routine that does not change whether the gear cost sixty dollars or nine hundred.

Why manual focus at all

Autofocus decides. That is its function and it is the reason it cannot be used for scripted work. A shot may require focus to sit on a background while a face is in frame, or to rack at an exact word in a line, or to hold on an empty doorway before anybody arrives. A system choosing its own subject cannot do any of that.

Manual focus with marks is also repeatable. Take four has to match take one, because they will be cut together, and a system that focuses slightly differently each time produces takes that do not intercut cleanly. A marked pull is identical every time by construction.

This is the same divide that runs through the whole site. Reactive documentary work should use autofocus deliberately and enthusiastically. Scripted work should use marks. Neither is a compromise.

Marking, in order

  1. Block the scene with the actors and find the two or three positions where they stop or where focus must change.
  2. Mark those positions on the floor with a T or a triangle of Gaffer Power Black Gaffer Tape, 2 inch, with the point where their toes go.
  3. Measure from the sensor plane, not from the front of the lens. Most cameras have a marked sensor plane symbol on the body.
  4. Set focus at each marked distance and mark the follow focus disc with a wax pencil, labelling each one.
  5. Set the A and B hard stops at the extremes of the actual move, so the pull cannot overrun.
  6. Rehearse the full pull at performance speed three times before rolling.

Measuring from the sensor plane is the step that produces mysterious soft footage when it is skipped. Lens distance scales are calibrated from the sensor, and measuring from the front element on a long lens can be off by fifteen centimetres, which at f/1.4 on a close subject is the entire depth of field.

Depth of field is your margin for error

The depth of field is how much of the shot is acceptably sharp, and it is your entire tolerance. At f/1.4 on a full frame sensor with a 50mm lens focused at two metres, that tolerance is a matter of centimetres. At f/4 in the same setup it is a comfortable margin. This is a creative decision with a direct operational cost.

The three variables are aperture, focal length and distance. Wider aperture, longer lens and closer subject all reduce depth of field. The one that surprises people is distance: the same lens and aperture at five metres has several times the depth of field it has at two.

Run your specific numbers on the depth of field calculator before a difficult scene rather than after. If the answer is a few centimetres and the actor is walking, the honest options are to stop down, to light the scene enough to allow it, or to accept that some takes will be soft.

Watch the actor, not the monitor

The instinct is to stare at the monitor and correct what you see. That is a feedback loop with your own reaction time built into it, so you are always correcting an error that has already happened, and the result is the visible hunting that identifies an inexperienced pull.

Experienced pullers watch the subject and move the wheel to the mark. The monitor becomes a confirmation glance rather than the control input. This is why marks matter so much: they replace visual feedback with a physical position you can reach without looking.

On a wireless system the argument is even stronger, because the link adds latency to the feedback loop. A system quoting 60 milliseconds plus your own reaction time is a substantial delay, and the only way to be ahead of it is to know where the wheel is going before the actor gets there.

What the pull runs on

$21 to $299. A manual wheel with stops, a wireless system for a second operator, and a whip that puts the knob where a hand naturally sits.

Starter pick $59
Tilta Pocket Follow Focus

Tilta

Tilta Pocket Follow Focus

A geared manual wheel with A and B stops and fluid damping on a 15mm rod clamp, which is the whole job for a fraction of a wireless system.

Type
Manual, geared
Mount
15mm rod

Manual only, and that is often the right answer.

Check price
Best value $299
Tilta Nucleus Nano II Base Kit

Tilta

Tilta Nucleus Nano II Base Kit

A hand wheel and one motor, which is the cheapest complete wireless focus system that a second person can actually pull with.

Type
Wireless
Motors
1 included

The pick the moment a focus puller joins you.

Check price

Common failures and their causes

FailureUsual causeFix
The pull overshoots the markDamping too light, or the gear ring slippingIncrease damping, check the ring grips
Focus hunts visibly during the takeWatching the monitor instead of the actorUse marks and glance to confirm only
Everything is slightly softMeasured from the lens front, not the sensor planeMeasure from the marked sensor plane
Take four does not match take oneNo marks, pulling by eye each timeMark the disc and set A and B stops
The frame zooms during a rackFocus breathing on a stills lensUse cine glass, or hide the rack in a cut
The wheel will not turn the barrelNo 0.8 MOD gearing on the lensFit a snap-on gear ring

A NEEWER 14-Piece 0.8 MOD Focus Gear Ring Set set at around $41 covers fourteen barrel diameters and solves the last row for any stills lens. The compromise is real: a snap-on ring has some backlash and can slip under a fast pull, which is the single strongest practical argument for a matched cine set once you are pulling focus regularly.

Rigging the wheel where it belongs

On a tripod-mounted narrative rig, the follow focus goes on 15mm rods on the operator side at a height where a hand rests on it without reaching. Getting this wrong means every pull starts with a small movement to find the wheel, and that movement is visible.

On a shoulder rig, the wheel is often out of comfortable reach, and a 18-inch Flexible Follow Focus Whip at around $21 solves it by extending the knob to where your hand naturally sits. It costs less than a filter and it converts an awkward rig into a workable one.

For a dedicated focus puller, the wheel usually comes off the camera entirely and onto a wireless hand unit. That is the real function of a system like the Tilta Nucleus Nano II Base Kit: not better focus, but focus operated from a position where the actor can actually be seen.

Rehearsal is the whole job

Three rehearsals at performance speed, minimum. The first tells you whether the marks are right, the second tells you whether the timing is right, and the third is the one where you find out that the actor moves faster than you expected on the second beat.

Rehearse with the aperture you will shoot at. Rehearsing at f/8 with the lights up and then shooting at f/1.8 means rehearsing with a margin you will not have, and every mark will feel harder in the take than it did in rehearsal.

And rehearse the recovery. Decide in advance what you do if a pull goes wrong halfway: whether you continue to the mark and let the correction be visible, or hold and let the shot be soft. A deliberate choice looks better than a panicked one and it stops a mistake becoming two.

Next, from here

Common questions

How do focus pullers hit their marks?
With marks, not reflexes. Positions are taped on the floor, distances are measured from the sensor plane, and the corresponding focus positions are marked on the follow focus disc with a wax pencil. Hard A and B stops are set at the extremes of the move. Then the pull is rehearsed at performance speed three times before the camera rolls.
Should I measure focus distance from the lens or the camera?
From the sensor plane, which most cameras mark with a small symbol on the body. Lens distance scales are calibrated from the sensor, so measuring from the front element on a long lens can be off by fifteen centimetres. At a wide aperture on a close subject that is the entire depth of field, which is why this mistake produces footage that is mysteriously soft.
Should I watch the monitor while pulling focus?
Only to confirm. Watching the monitor and correcting what you see is a feedback loop with your reaction time inside it, so you are always correcting an error that already happened, which produces visible hunting. Watch the actor and move the wheel to the mark instead. On a wireless system the argument is stronger, since the link adds latency to the loop.
What aperture should I shoot at for a difficult focus pull?
Whatever gives you a depth of field you can actually hit. At f/1.4 on full frame with a 50mm lens at two metres, the tolerance is a few centimetres. At f/4 the same setup is comfortable. If the calculator says centimetres and the actor is walking, the honest options are to stop down, add light so you can, or accept that some takes will be soft.
Why does my follow focus overshoot?
Usually the damping is too light for the speed of the pull, or the gear ring is slipping under load. Check that the ring drives the barrel through its full range without creeping, then increase damping if the unit allows it. If a motor is involved, it may simply lack the torque for a stiff cine barrel, which is the difference between a light wireless kit and a cine-rated one.
Can I pull focus alone while operating?
On simple moves, yes, using marks and a whip so the knob is reachable. On anything complex it is genuinely two jobs, because framing and focus both want your attention at the same moments. The one product that changes this is a LiDAR autofocus unit driving a manual lens, which is the only thing in the category that gives a solo operator a genuinely new capability.

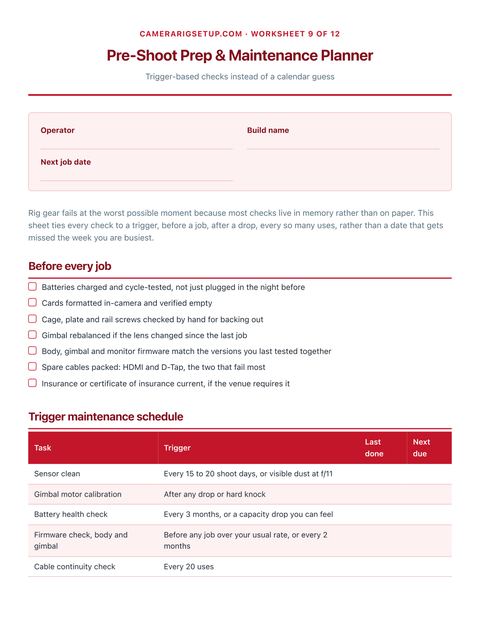

Totalling your own rig weight against your gimbal payload? The Camera Rig Build Planner is the paid version of these pages: 8 printable worksheets you fill in with your own numbers, plus the full PDF, $29.

How this page was researched. Specs come from manufacturer documentation, published payload and power ratings, and verified owner reviews. We do not claim to have had every one of these items in our hands, and we will not pretend otherwise.

This is researched guidance, not professional advice. Set mechanical end stops before engaging a motor on a lens, or the motor will drive the barrel past its physical limit.
